Praxis M30 Threaded BB Press Fit


Size: ROAD 68mm BB30/PF30
Price:
Sale price$84.00

Description

Praxis M30 Threaded BB

M30 Press Fit BB

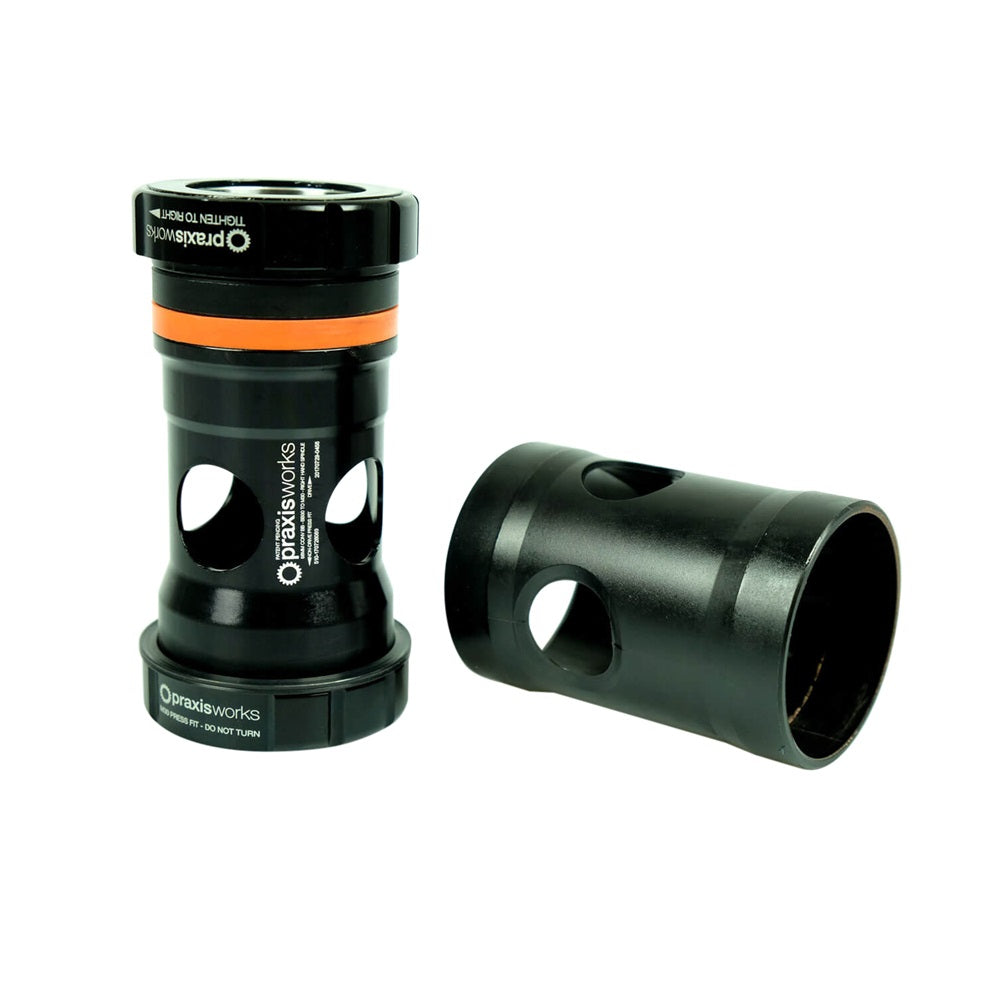

This is our M30 Press Fit Bottom Bracket for installing a Praxis M30 crank into a 68mm/73mm BB30 or PF30 frame. Our patent pending design keeps the cartridge bearings outboard of the frame right on Shimano™ spec for greater rigidity and free of frame/c-clip tolerance issues that other systems deal with.

Simply press in the longer non-drive-cup, then the shorter drive cup threads into it. As the drive cup threads in, our trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and our Collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This BB design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

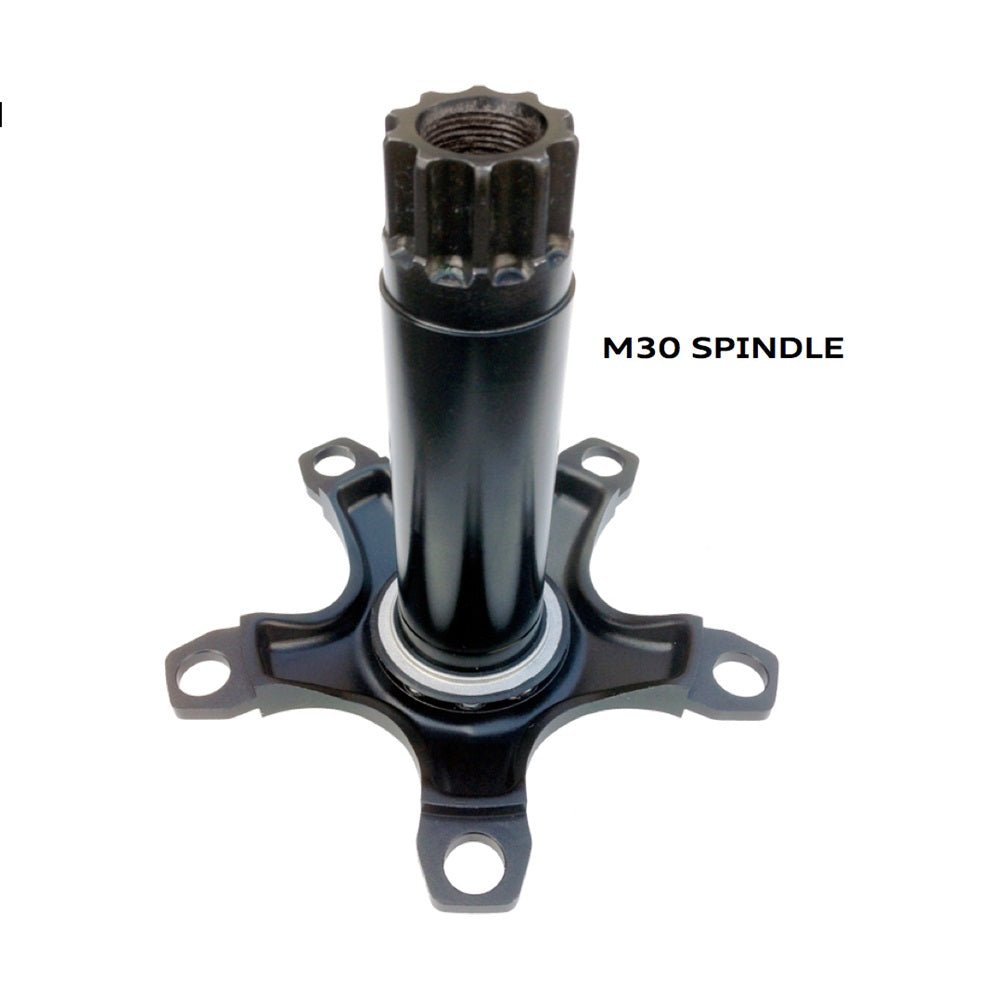

• For M30 spindle based cranks only.
• Forged & machined heat-treated 7075 T6 Aluminium.
• Steel cartridge bearings. "Ceramic" version contains ABEC 5 bearings.
• 30mm Drive bearing / 28mm Non-Drive bearing.
• 68mm Road version / 73mm MTB version.
• For BB86/92, BB30, PF30, and Specialized Road OSBB Aluminium frames.
• Not for BBRight or BB386EVO frames.
• MTB Guides - ISCG05 & ST Mounted Good, ISCG03 Not Good.
• BB86/92 frames need to be check with the frame gauge before fitting.
